BTL66 FST

Trailer Applications

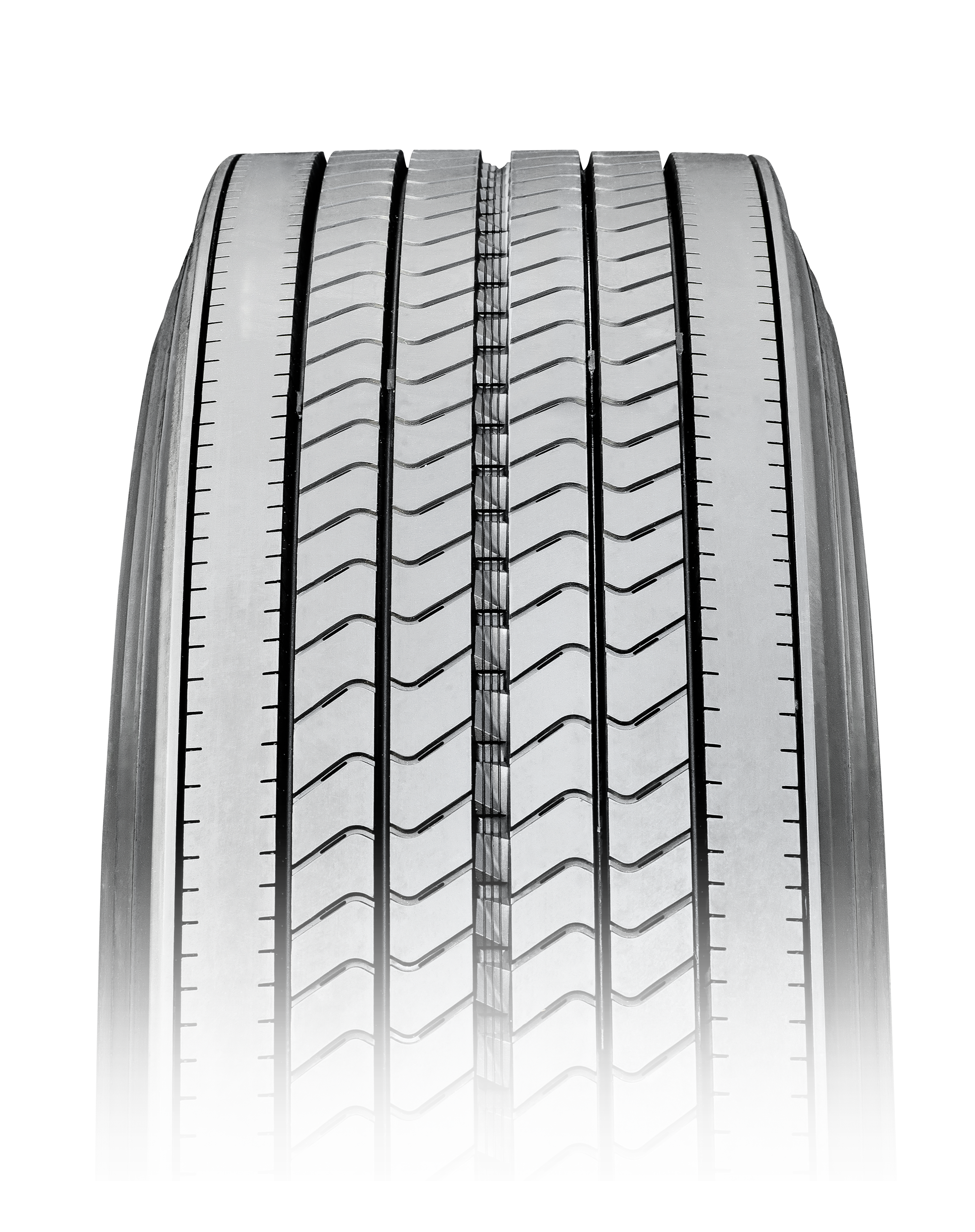

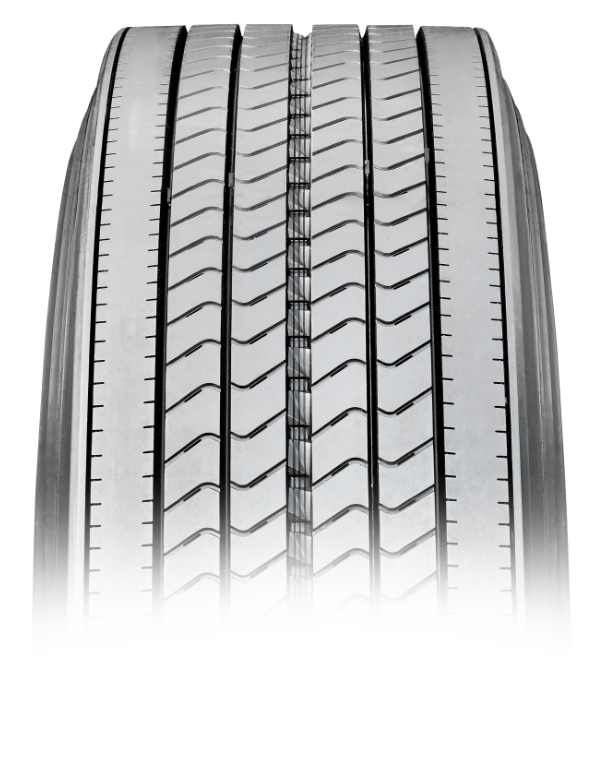

The Blackhawk BTL66 FST is designed specifically for trailer applications. The BTL66 FST is engineered with an advanced rubber compound which delivers excellent tread wear and fuel saving performance. The BTL66 FST tread design resists irregular tread wear and minimizes skid wear. Its wide center groove delivers superior water evacuation.

Applications

  • Long-Distance Trailers (Tandem)

Features

  • Shallow tread reduces irregular wear.
  • Optimized casing reduces rolling resistance.
  • Solid shoulder ribs minimize skid wear.

*Pending Smartway verification by U.S. EPA.

Size Ply T.D. Load Index S.R. O.D. S.W. R.W. Load Carrying Capacity A.P.
32nds Single Dual in. in. in. Single lbs. Dual lbs. psi
11R22.5 14 12 144 142 L 41.5 11.0 8.25 6,175 5,840 105
11R22.5 16 12 146 143 L 41.5 11.0 8.25 6,610 6,005 120
295/75R22.5 14 12 144 141 L 39.9 11.7 9.00 6,175 5,675 110
11R24.5 14 12 146 143 L 43.5 11.0 8.25 6,610 6,005 105
11R24.5 16 12 149 146 L 43.5 11.0 8.25 7,160 6,610 120
285/75R24.5 14 12 144 141 L 41.3 11.1 8.25 6,175 5,675 110
